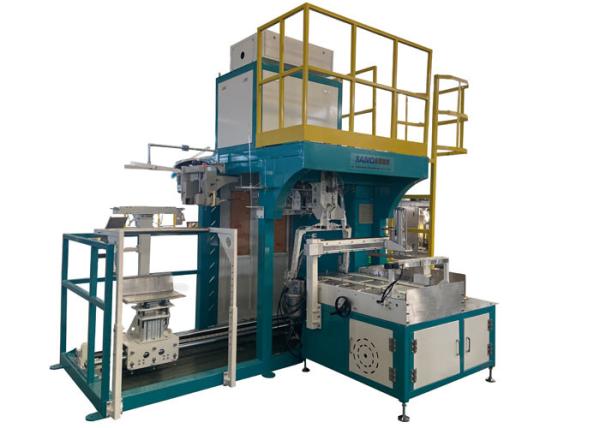

    Limit Switch Schneider Brand Packing Machine With Auto Sealer In Plastic Industry

    Ask Lasest Price
    Brand Name : EAGLE
    Model Number : SXPA50
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50 units/month
    Delivery Time : 40-50 working days
    • Product Details
    • Company Profile

    Limit Switch Schneider Brand Packing Machine With Auto Sealer In Plastic Industry

    Limit Switch Schneider Brand Packing Machine With Auto Sealer In Plastic Industry

    Introduction
    Automatic Weighing And Packing Machine is applied to a wide range of packages, such as pre-made pouch, prefabricated bags, zipper pouch, spouted pouch, and shaped pouch etc. Up to 50kg can be filled.

    Automatic Weighing And Packing Machine Technical Parameters


    Machine ModelSXPA50SXPA50P
    Packaging Weight10-50KG10-50KG
    Bag Size: L*W(mm)630-1100/350-650630-1100/350-650
    Bag MaterialWoven bag (paint film); 2. Kraft bag; 3. Composite film plastic bag(film thickness is more than 0.18mm)
    Measuring Accuracy0.2%FS0.2%FS

    Packaging Speed

    6-15 bags/minute (a little different as different packaging materials and bag sizes)2-5 bags/minute (a little different as different packaging materials and bag sizes)
    Sealing ModeWoven bag: folding/seam; 2. Kraft bag: heat sealing/seam; 3. Composite film plastic bag: heat sealing

    System equipment meets engineering condition &public use


    (1) Electricity:220/380V,50Hz

    (2) Power:14kw

    (3) Air Supply Pressure:0.5-0.7MPa

    (4) Air Consumption:1.8Nm³/min

    (5) Temperature:-15℃-45℃


    Machine Main components


    a. Empty bag storage

    b. Empty bag taking unit

    c. Bag management unit

    d. Bag sending unit

    e. Bag upper unit

    f. Bag clipping and material filling unit

    g. Bag holding unit

    h. Bag mouth guiding unit

    i. Heat sealing / bag sewing station

    j. Stand-up bag conveyor

    k. Electrical control section


    Machine main parts list (subject to actual configuration)


    No.NameBrand
    1Vacuum pumpShanghai Zhongde
    2CylinderJapan SMC
    3Solenoid ValveJapan SMC
    4Other pneumatic componentsJapan SMC
    5Normal MotorCPG
    6Servo MotorDelta (Taiwan)
    7Heat sealing headDechao
    8PLCOmron
    9Touch ScreenWeinview
    10InverterDelta (Taiwan)
    11Switching power supplySchneider (France)
    12SwitchSchneider (France)
    13Air switchSchneider (France)
    14AC contactorSchneider (France)
    15Motor circuit breakerSchneider (France)
    16Thermal relaySchneider (France)
    17Limit switchSchneider (France)
    18PhotoelectricSICK
    19Load cell

    Automatic Weighing And Packing Machine Features

    1. The control parts use Siemens PLC and Weinview 10-inch color touch screen, which has advantages of simple operation and stability.
    2. The pneumatic part adopts AirTAC magnetic valve, oil-water separator and cylinder.
    3. The vacuum system adopts German FESTO magnetic valve, filter, digital vacuum pressure switch.
    4. On all actuating mechanism, there is magnet switch or optoelectronic switch as the detection unit, which is safe and reliable.


    Working Process

    Automatic bag seizing

    Automatic bag opening

    Automatic bag feeding & material auto filling

    Bag automatic transferred by the conveyor

    Auto bag sewing / heat sealing (folded)

    Finished bag

    Packaging and Delivery

    1. Packing: Wrapped with film firstly, then packaged with standard wooden cases
    2. Delivery: Usually we adopt sea transportation, if there are different requirements, we will make it accordingly
