IRB660 4 Axis Palletizing Production Line In Fertilizer Industry
For 100 Kg Package
Pushing the work envelope

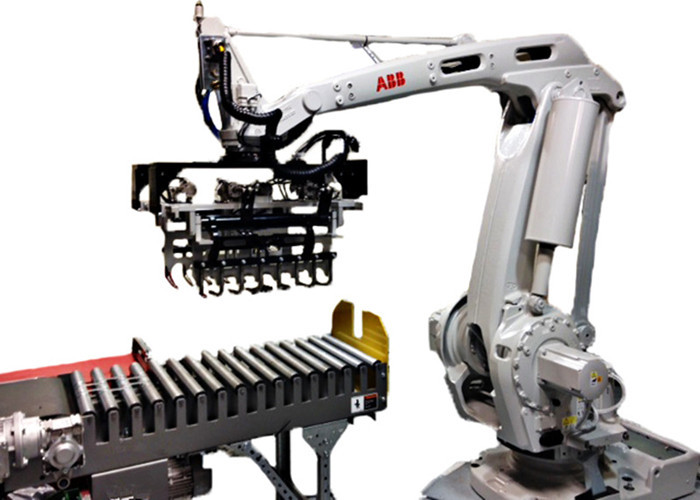

The ABB 660 is a dedicated palletizer that blends speed, reach and
payload like no other robot on the market. This is an exceptionally
fast 4-axis machine that combines a 3.15 meter reach with a 250kg
payload, making it ideal for palletizing bags, boxes, crates,
bottles and more.
The IRB660 is considerably faster than its predecessor. Its
optimized motor power and motion performance ensure significantly
shorter cycle times than competing products. The new palletizer
comes in a high-speed version capable of handling 180kg payloads at
full speed and as a 250kg version for high throughput.
The robot’s impressive reach means it can service up to four
in-feed conveyors, two pallet stacks, one slip-sheet stack and four
palletizing out-feeding lines. In fact, the IRB 660 has the
versatility, reach and handling capacity to meet the demands of
just about any palletizing applications.
The IRB 660 is easy to come to grips with ABB’s multi-functional
IRC 5 controller and comprehensive packaging line software
PickMaster, house all the key functions for quick, easy programming
and intuitive operation on the shop floor. Furthermore, the robot’s
rugged design and IP 67 tightness make for steady performance in
even the toughest environments. As well as ensuring those extra
lengthy service intervals.
| Specification |
| Robot versions IRB | Handling capacity | Reach |
| 660-180/3.15 | 180kg | 3.15m |
| 660-250/3.15 | 250kg | 3.15m |
| Number of axis | 4 | |
| Protection calss | IP 67 | |
| Mounting | Floor mounted | |
| IRC5 Controller variants | Single cabinet, Dual cabinet | |
| Cycles per hour | | |
| Load | Cycles per hour | |
| 180kg | 1570 | |
| 250kg | 1360 | |
| Performance |
| Position repeatability | 0.1mm | |
| Path repeatability | 0.3mm | |
| Axis movements | Working range IRB 660 | |
| Axis 1 Rotation | +180° to -180° Option +220°to -220° | |
| Axis 2 Arm | +85° to -42° | |
| Axis 3 Arm | +120°to -20° | |
| Axis 6 Turn | +300°to -300°Default +150 rev. to -150 rev. Max. | |
| Max velocity | | |
| Axis no. | IRB660-180/3.15 | IRB660-250/3.15 |
| 1 | 130°/ s | 95°/ s |
| 2 | 130°/ s | 95°/ s |
| 3 | 130°/ s | 95°/ s |
| 6 | 300°/ s | 240°/ s |
| Electrical connections |
| Supply voltage | 200-600V, 50/60 Hz | |
| Power consumption | ISO-Cube | 2.7KW |
| Normal movements | 3.2KW |
| Physical |
| Robot base | 1136*850mm | |
| Weight | 1650kg | |
| Environment |
| Ambient temperature for mechanical unit |
| During operation | +0℃(32°F)to +50℃(122°F) | |
| During transportation and storage | -25℃(-13°F)to 55℃(131°F) | |
| For short periods | (Max. 24h) +70℃(158°F) | |
| Relative humidity | Max 95% | |
| Noise level | Max 73 dB(A) | |
| Safety | Double circuits with supervision, emergency stops and safety
functions, 3-positions enable device | |
| Emission | EMC/EMI-shielded | |
Data and dimensions may be changed without notice.
Advantages
- Shorten cycle time
IRB 460 is the fastest 4 axis multifunction industrial robot in the
world which can significantly shorten the cycle time of each part
work and greatly enhance production efficiency. The arriving
distance of this robot can be 2.4m and available loading 110kg. The
highest handling movement can be 2190 times/hour when loading 60kg
(400mm X 2000mm X 400mm) which is 15% faster than other product
under similar conditions.
- Running with high accuracy
IEB 460 runs steadily with excellent path accuracy which matched
movement control software of ABB patent QuickMove and TrueMove. The
robot is also available even for the most sensitive product and
ensures that cycle time is not affected.
- Small footprint and high output
IRB 460 robot is designed compacted which can shorten 20% of the
distance to product pallet compared with the similar products that
speed and loading is nearly. Only this index can improve production
efficiency of 3%.
- Low cost of the robot and high production efficiency
IRB 460 robot is produced based on automobile industry with steady
structure and good design which uptime long and low maintenance
costs. ABB also provide RoboCare 3 years warranty program which
ensure the production available upremise of no additional cost.
Commission and After-sale Service
We make accurate factory layout design according to customer’s
factory size; if the customer needed, we could make workshop design
with electric power, water supply, gas power, material storage,
final storages, workers’ restroom, etc.
If customer need, we will send engineer for the commissioning
service. 1-2 of our engineer will
go to your factory to install and adjust the processing line to
realize normal production at shortest time.
Our engineers have responsibility to train and teach the workers
how to operate, clean, maintain the repair all the machine, until
the worker could well operate the production line.
It normally costs 10 days for the commissioning service, and we
supply 1-year guarantee from the date of completion of
commissioning service.
The engineer’s round-trip flight tickets, accommodation and daily
salary USD 60-100 are on client’s account.
Working range at wrist center & load diagram
IRB 660-180/3.15 and IRB 660-250/3.15
Why choose us
1. We will help you with the program of ABB, and the basement and
grab hands.
So that you can easily use it.
2. Also, we will send our technician to your factory workshop to
train your operator until they know how to use.
3. We have done many projects of ABB robot palletizing together
with our packing and filling system to be a whole system. We have
many brands of robot, not only ABB, but also Kawasaki, Fanuc, Kuka
etc. and we can select the best suitable & cheapest robot model for
you.
Customize Contact Us
You would like to know the detail offer of the machines, please
confirm your detail requirements (information as below) for the
whole project so that we can suggest the best suitable machine
model for you.
1. What's your product? Packed in bag or carton or others?
2. How many packages per hour?
3. Can you send me the layout of your current workshop? We have to
design the drawing of the whole line based on your workshop layout.
If no, please tell us the available sizes of your workshop.
4. What's the height of full pallet (without the empty pallet
thickness)?
5. What's the palletizing type (how many bags per layer, how many
layers per pallet, how the bags are put on each layer)?
6. What's the sizes (length, width, height) of empty pallet?
7. Do you want auto pallet magazine?
8. What’s your country voltage?
